Product category > Packing machine

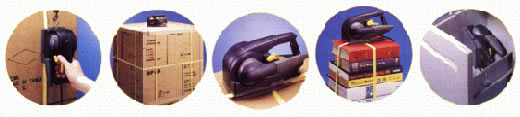

Portable rechargeable balers

Product features

· One-handed operation, tighten - weld - sealed with a complete.
· Packaged size widely :9-16mm, applicable PP, PET tape, friction and heating.
· Easy to operate, the single independent rapid completion of large items to play with other strapping machines are unable to complete the work to be completed.
· Portable Rechargeable, portable, packaged without space constraints.
The · battery capacity, a single charge can be packaged up to 250 times.

Technical parameters:

· Model: ORT-200
· Power supply: 220V
· Packing with: PET.PP
· Packing with the specifications: width (9-16) mm; the thick PP with (0.65 ~~ 1.05) mm; the PET band (0.45 ~~ 1.05) mm
· Largest bundle Jinshu clamping force: PET with 200kgs (2KN); PP with: 100kgs (1KN).
· Appearance size: long 390.50mm x the wide 127.80mm X high 134.60mm
The weight of the machine: body: 3.5kg; battery: 0.92 kg.
· Tightening of Speed: 130mm / s.
· Bonding time adjustment: 0.6 to 4.8 seconds.
· Bonded efficiency: 80% ± 5%
· Charger: under normal conditions of the charging time of approximately 30 minutes.
